تفاصيل المنتج:
|
| عامل الشكل: | خادم 2U Rackmount | المعالج: | "1 أو 2 من معالجات Intel® Xeon® القابلة للتطوير من الجيل الثالث و3 واجهات UPI |
|---|---|---|---|
| ذاكرة: | 16 × فتحات الذاكرة | تخزين: | ما يصل إلى 24 × 3.5 بوصة من محركات الأقراص الصلبة SAS/SATA (قابس سريع) |
| فتحة الإدخال/الإخراج القابلة للتطوير: | ما يصل إلى 7 فتحات PCIe، بما في ذلك فتحة OCP3.0 واحدة، وما يصل إلى فتحتين OCP3.0 | شبكة: | "ما يصل إلى 2 × OCP3.0، 1/10/25/40/100/200 جيجابت/ثانية |
| إبراز: | Inspur 2U rack server 8368CPU,NF5266 M6 server rack storage,Inspur server rack with warranty,NF5266 M6 server rack storage,Inspur server rack with warranty |
||

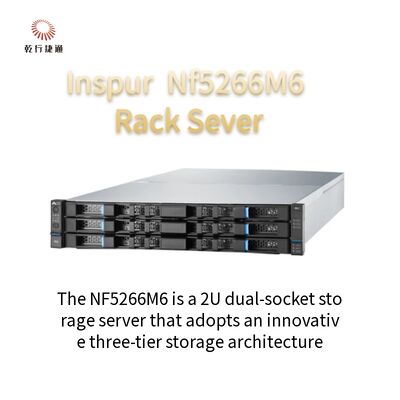

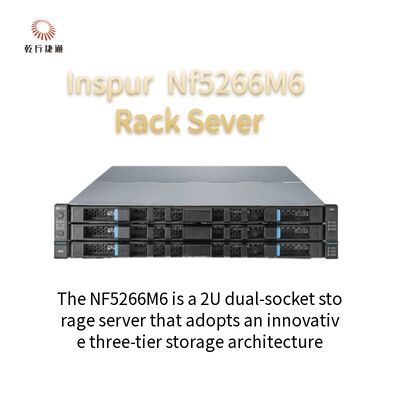

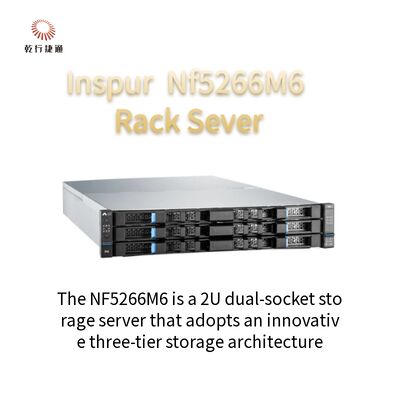

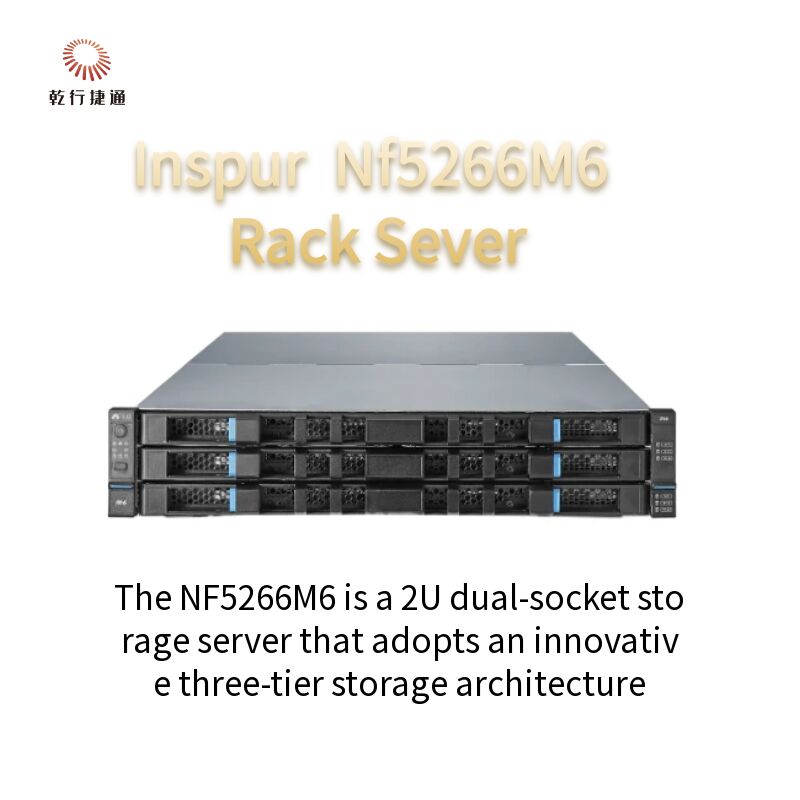

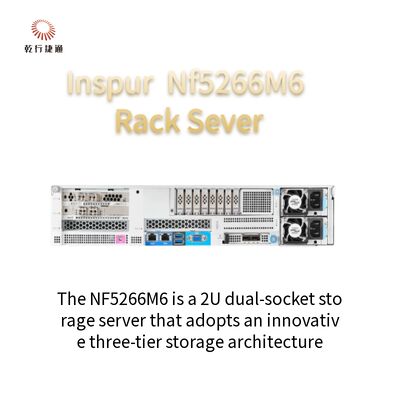

Inspur NF5266M6 2U Storage Server
The NF5266M6 is a 2U dual-socket storage server that adopts an innovative three-tier storage architecture. It has improvement and optimization in storage and computing performance,fiexible configuration, and intelligent management. It is suitable for big data,CDN,hyper-converged,distributed storage,etc.
Technical Specifications
| Model | NF5266M6 |
| Form Factor | 2U rackmount server |
| Processor | 1 or 2 3rd Generation Intel® Xeon® Scalable processors 3 UPIs and 11.2GT/s per link |
| Memory | 1. 16 x memory slots 2. Each processor supports 8 x memory channels and each channel supports a maximum of 1 memory slot 3. Memory speed can reach 3200MT/s. Support RDIMM and BPS/NVDIMM 4. Memory protection mechanisms: ECC, memory mirroring, memory-level protection |
| Storage | Front: up to 24 × 3.5-inch SAS/SATA HDDs (hot-plug) Rear: up to 8 x 2.5-inch SAS/SATA/NVMe/E1.S SSDs or 2 x 3.5-inch drives (hot-plug) Up to 2 x M.2 SSDs or 2 x E1.S SSDs storage modules Up to 2 x TF cards (1 x BIOS + 1 x BMC) (Max. drive support is determined by the specific configuration) |
| I/O Scalable Slot | Up to 7×PCIe slots, including 1x OCP3.0 slot, up to 2 x OCP3.0 slots |
| Network | Up to 2 x OCP3.0, 1/10/25/40/100/200Gb/s 1/10/25/40/100/200Gb standard NICs |
| Interface | 2 x rear USB3.0 + 1 x rear VGA + 1 x COM port |
| System Fan | N+1 redundancy and hot-pluggable |
| PSU | 1+1 redundant platinum power supplies High-voltage DC and titanium power supply |
| System Management | An independent 1000Mbps NIC dedicated to IPMI remote management |
| OS | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, etc. |
| Dimension(W x H x D) | 482mm(19 inches) x 87.5mm(3.4 inches) x 891.2 mm(35 inches) (with mounting ears) 447mm(17.6 inches) x 87.5mm (3.4 inches)x 866 mm (34.1 inches) (without mounting ears) |
| Weight | 45kg (99.2 lbs) |
| Working Temperature | 5°C-40°C. 41°F-104°F |
Key Features
1. 2U space supports up to 26×3.5-inch drives. Compared with the traditional 2U12 drive model, the storage density is increased by 116%. It also supports up to 8 x 2.5-inch small drives and the SSD cache density is 100% higher than the previous generation.
2. 2×3rd Generation Intel® Xeon® Scalable processors enable even outstanding CPU computing power. Compared with the previous generation, this machine has the performance boosted by up to 44%, ideal for demanding scenario of computing power in big data analysis.
1. I/O expansion capability is increased by 75%. The transfer rate of PCIe4.0 is doubled and reaches 16GT/s. Support the 200Gb network and ensure a low-latency experience.
2. The modular design allows the on-demand combination of storage and IO. It supports 8 x SAS/SATA/NVMe/E1.S SSDs to meet the needs of data tiering, and enables 1/10/25/100/200Gb NICs and SMART NIC to support various network requirements.
Notices:
1. Open the packaging, check the products carefully, and take them gently.
2. The product is a brand new original unopened equipment.
3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.
International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
