تفاصيل المنتج:
|
| آل القنوات: | 32 | AI التقاط الأحداث في الوقت الحقيقي / ثانية: | حتى 120 |
|---|---|---|---|
| أرقام النماذج القياسية: | ST20000VE004 | واجهة: | ساتا 6 جيجابايت/ثانية |
| تكنولوجيا التسجيل: | CMR | تصميم محرك الأقراص: | الهيليوم |
| محرك الخلجان المدعومة: | غير محدود | آل القنوات: | 32 |
| AI التقاط الأحداث في الوقت الحقيقي / ثانية: | حتى 120 | تحديد: | 20 تيرابايت |
| واجهة: | ساتا 6 جيجابايت/ثانية | ||
| إبراز: | Seagate SkyHawk AI HDD,20TB surveillance hard drive,SkyHawk AI video storage,20TB surveillance hard drive,SkyHawk AI video storage |
||

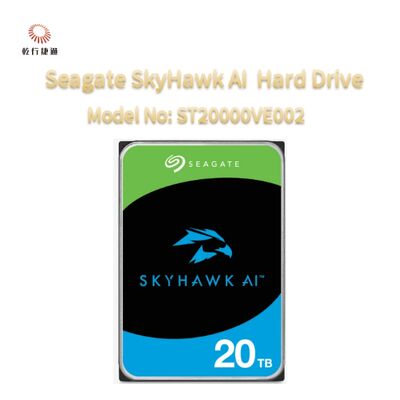

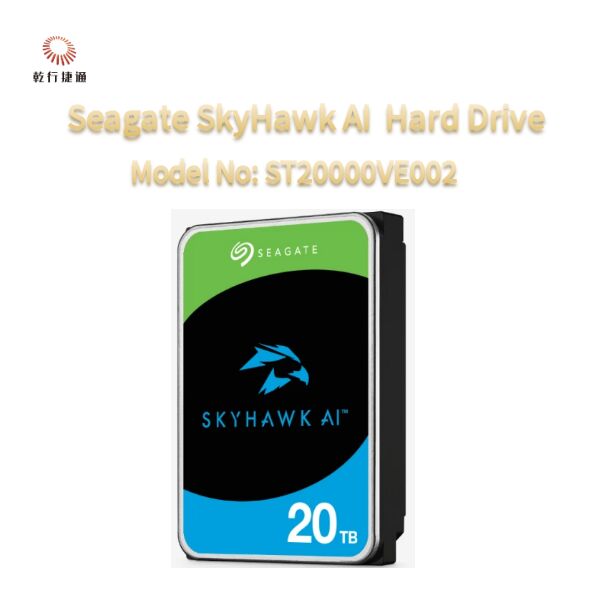

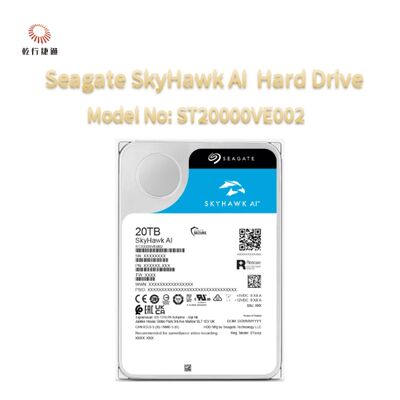

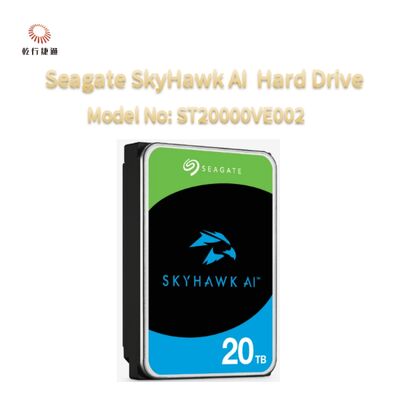

Seagate SkyHawk AI Video Hard Drive
Seagate® SkyHawk™ AI 32TB is a video-optimized drive designed for NVRs, with artificial intelligence (AI) for edge applications.
| Specifications | 20TB | ||
| Capacity | 20TB | 20TB | 20TB |
| Standard Model Numbers | ST20000VE004 | ST20000VE003 | ST20000VE002 |
| Interface | SATA 6Gb/s | SATA 6Gb/s | SATA 6Gb/s |
| RecordingTechnology | CMR | CMR | CMR |
| Drive Design | Helium | Helium | Helium |
| Features and Performance | |||
| Drive Bays Supported | Unlimited | Unlimited | Unlimited |
| Al Channels | 32 | 32 | 32 |
| AI Real Time Capture Events/Sec | Up to 120 | Up to 120 | Up to 120 |
| Al Real Time Compare Events/Sec | Up to 96 | Up to 96 | Up to 96 |
| HD Cameras Supported | Up to 64 | Up to 64 | Up to 64 |
| RV Sensors | Yes | Yes | Yes |
| Max. Sustained Transfer Rate OD (MB/s,MiB/s) | 240/229 | 285/272 | Up to 260 |
| Cache (MB) | 512MB | 512MB | 256MB |
| Reliability/Data Integrity | |||
| Tarnish Resistant | Yes | Yes | Yes |
| Load/Unload Cycles | 600,000 | 600000 | 600000 |
| Nonrecoverable Read Errors Rate, Max | 1 per 10E15 | 1 per 10E15 | 1 per 10E15 |
| Power-On Hours per year | 8,760 | 8760 | 8760 |
| Workload Rate Limit (WRL) | 550 | 550 | 550 |
| Mean Time Between Failures (MTBF) (hours) | 2500000hr | 2500000hr | 2500000hr |
| Warranty, Limited (years) | 5 | 5 | 5 |
| Rescue Data Recovery Services (years) | 3 | 3 | 3 |
| Power Management | |||
| Startup Current, Typical (12V, A) | 2.0A | 2.0A | 2.0A |
| Average Read/Write Power*(W) | 8.2 | 7.8 | 7.72 |
| Idle Average (W) | 6.7W | 6.3W | 3.54W |
| Standby Mode/Sleep Mode, Typical (W) | 1.2/1.2W | 1.1/1.1W | 1.01W |
| Voltage Tolerance (5V) | ±5% | ±5% | ±5% |
| Voltage Tolerance (12V) | ±10% | ±10% | ±10% |
| Environmental/Temperature | |||
| Operating (drive reported, min °C) | 10 | 10 | 10 |
| Operating (drive reported, max °C)8 | 60°C | 65°C | 65°C |
| Nonoperating (ambient, min °C) | -40°C | -40°C | -40°C |
| Physical | |||
| Height (mm/in, max) | 26.1mm/1.028in | 26.1mm/1.028in | 26.1mm/1.028in |
| Width (mm/in, max) | 101.85mm/4.010in | 101.85mm/4.010in | 101.85mm/4.010in |
| Depth (mm/in, max) | 147.0mm/5.787in | 147.0mm/5.787in | 146.99mm/5.787in |
| Weight (g/lb,typical) | 695g/1.53lb | 685g/1.51lb | 680g/1.499lb |
| Carton Unit Quantity | 20 | 20 | 20 |
| Cartons per Pallet/Cartons per Layer | 40/8 | 40/8 | 40/8 |
Key Advantages
ImagePerfect™ AI firmware delivers zero dropped frames while supporting heavier workloads.
Versatile capabilities intelligently adapt to the scale of your AI environment, supporting up to 64 HD video streams and 32 AI streams.
Rescue Data Recovery Services⁶ SkyHawk AI comes with extra peace of mind for any mechanical, accidental, or natural disaster. With a 95% success rate of in-house recovery, Seagate has your back with a 3-year included Rescue Services plan.
SkyHawk Health Management actively helps protect your video storage by focusing on prevention, intervention, and recovery options. 1 Included RAID RapidRebuild™ provides 3× faster volume rebuilds.
Class-Leading Reliability and Dependability SkyHawk AI drives are rated for up to 2.5M hours MTBF and a 550TB/year workload rate for more than 3× that of standard surveillance hard drives. Backed by a 5-year limited warranty.
Powerful processing to welcome workload challenges—SkyHawk AI supports video analysis and recording simultaneously with GPU analytics workloads.
Enjoy consistent performance with built-in rotational vibration sensors providing reliable storage for NVR with little lag or downtime.
Unlimited multi-bay support helps you meet your growing storage demands.
